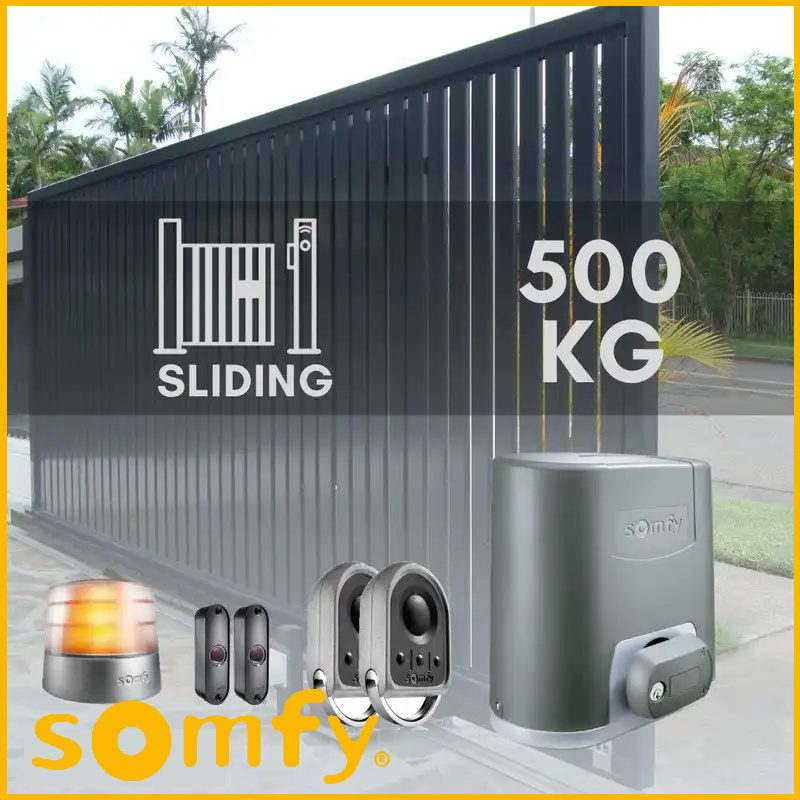

Somfy Home Motorization For Sliding Gate Elixo 500 230V Eco CFT Pack RTS
Brand: Somfy |
PN @ Vendor:
Elexio 500 230 V RTS
Somfy Motor For Sliding Gate UP TO 8 M | 500 KG
Model: Elexio 500
Reliable and hard-wearing for sliding gates
Easy to install: Easy access to ground fixation screws from the top | No adjustment needed from the installer.
Power supply 220 V / 230 V - 50/60 Hz
Motor power supply 230 V AC
Power consumption 290 W
Capacitor 10 μF (230 V) - 40 μF (110 V)
Motor revolutions 1400 rpm
Maximum consumed current 1.5 A (230 V) - 3A (110 V)
Revolutions at output 48 rpm
Number of storable channels 128
Operating time 0 - 120 s
Gate speed 8.5 m/min
Maximum torque 20 Nm
Number of cycles/day 100
Categories : HOME SECURITY | SOMFY
